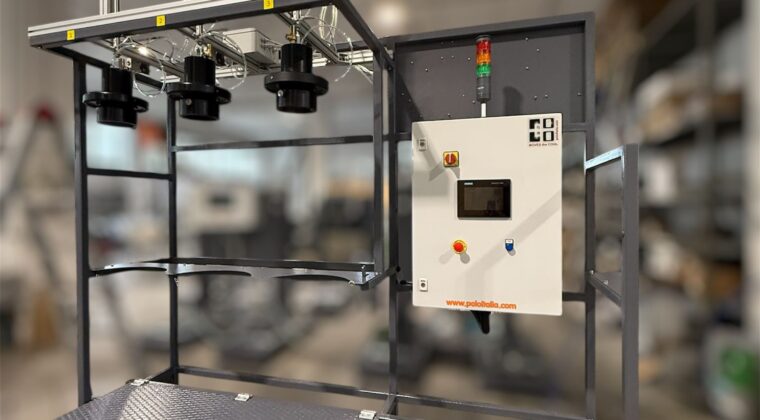

Inert Leak Detection System
We’re pleased to introduce the Leak Detection System developed by our Key Member POLO, designed to enhance safety and accuracy in the final quality control of filled gas cylinders.
🔍 How it works
The system performs vacuum hood-based leak detection on filled cylinders. A vacuum is pulled under each sealed hood, and pressure is monitored over time. A rise in pressure indicates a potential leak from the cylinder. This method enables accurate, non-invasive leak detection in a controlled vacuum environment.
The system performs vacuum hood-based leak detection on filled cylinders. A vacuum is pulled under each sealed hood, and pressure is monitored over time. A rise in pressure indicates a potential leak from the cylinder. This method enables accurate, non-invasive leak detection in a controlled vacuum environment.
💡 Key Features:
-
Fully automated test sequence with user-friendly touchscreen interface
-
Secure hood-lift system with guided alignment and control
-
Adjustable moving bar to accommodate and test cylinders of different sizes
-
Built-in diagnostic tools for real-time monitoring and maintenance support
-
Compliant with EU Machinery Directive 2006/42/EC
📐 Technical Overview:
-
Dimensions: 3050 x 2300 x 815 mm
-
Weight: ~280 kg
-
Medium: Typically inert gases, adaptable to other applications
-
Working Pressure: 0–1 bar
-
Power: 230V / 10A / 50–60Hz
Whether as a standalone solution or integrated into a full cylinder filling plant, POLO’s new system guarantees accurate, repeatable leak detection with minimal operator intervention.
